Product description

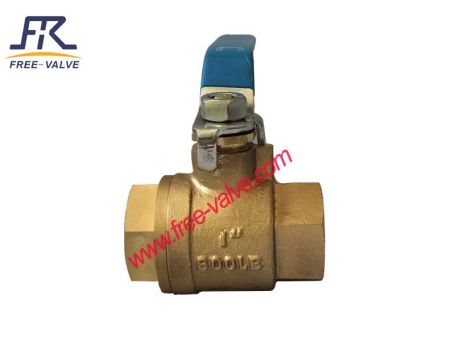

FREE-Valve’s Aluminum Bronze Floating Ball Valve body is manufactured from aluminum bronze.The valve with a bronze or stainless steel blow out-proof stem. With the full port design and brass ball, the ball valve allows maximum flow and minimum pressure drop or turbulence with unobstructed bi-directional flow,so FREE-Valve’s bronze ball valve is a better choice for any bronze valve needs.
Benefits
1.Valve is friendly, quick and easy to install.
2.Manufactured with full bore or necking structure, the one-piece floating ball valve, two-piece floating ball valve and three-piece floating ball valve are all available from us.The two-piece valve is recommended for many applications.
3.The lever handle provides convenient quarter-turn operation and bubble-tight shutoff
Specification
Size Range:3/8" to 2"
Pressure Range :Class150~Class600,1.6MPa~4.0MPa
Body Material : Bronze
Connect Method :NPT, NPTF, NPSM, UNSF, BSP, BSPT for selecting
Work Temperature:-20 to 120° C
Design standard:ASME B16.34,API6D
Test and Inspect:API598
Face to Face:ASME B16.10
Medium :Water ,oil ,gas ,water,sea water
Driving method : Handle
Application industry
Chemical industry
Oil gas industry
Power/sea water industry
Price terms:FOB,CIF,FCA,CFR
Price:100-1000USD/set
Payment terms:TT,LC
Origin:China
Delivery time:30 days
Model:FRQ12H
TEL: +86 371-55019379, +86 13523029957
E-mail:sales@free-valve.com
http://www.free-valve.com
Wechat ID:FreeValve
Product specifications
| Valve type: | Ball Valves |
| Type of Industry: | Water & Wastewater |
| Chemical | |
| Valve material: | Bronze |
| Brass | |
| Pressure class: | PN 10 |
| 600 Lbs | |
| 150 Lbs | |
| Valve standards: | Welded valves |
| DN (Diametre Nominal) | |
| ASME (American Society of Mechanical Engineers) | |
| Make / Brand: | FREE-VALVE |
Company introduction
Zhengzhou Free Fluid Control Technology Co.,Ltd is leader in the design valve and application of special industrial valves , we provide high quality industrial products for our customers all the time. First introduced ceramic engineer valve in the year 2008, FREE-VALVE’S have steadily proven their worth in tough industrial applications once thought to be solely the province of steel or ceramic valves. Today, as challenge traditional thinking in abrasive fluid applications, FREE-VALVES offer a wide rang of products:ceramic knife gate valve , ceramic double gate valve , ceramic rotary gate valve , slurry valve ,tank bottom angle valve , V type ball valve, ball valve, butterfly valve,ceramic tile lined composite pipes etc . They have a wide application in coal washing plant ,power plant ,alumina refinery, steel plant,petro-chemical etc. Our valves have been exported to Pakistan ,Turkey ,United states ,Indonesia,Taiwan etc .
