Product description

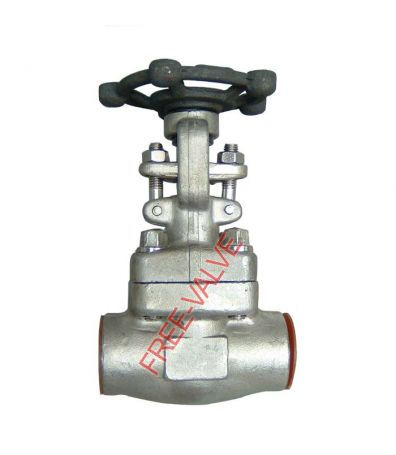

FREE-VALVE’s sw ends forged globe valve is compact, sturdy and ideal for high pressure and high temperature applications and consist of a disc and stem connection designed for regulated flow or on/off. Stem seal consists of flexible graphite packing with anti extrusion rings for optimum stem sealing. These valves are outside screw and yoke type (OS & Y) with rising stem and rising handwheel. These valves shall be bolted bonnet or welded bonnet type with full or standard bore options.
Features
1. Efficient packing seal at backseat to ensure no leakage from stem.
2. Outside Screw & Yoke construction facilitate stuffing box maintenance.
3. Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.
4. Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.
Technical Specification:
Socket weld end/Screwed end
ANSI B16.11/ANSI B1.20.1
Design standard
API 602, ASME B16.34
Pressure Range
150LB to 2500LB
Size Range
1/4" to 3"
Material
Forged Carbon, Stainless or Alloy Steel Materials
Connection type
Socket weld end/Screwed en
Working Temperature
≤500°C
Operating Type
Handwheel
Sealing surface material
Alloy
Pressure test
GB/T13927, API598
Face to Face
ASME B16.10

Application
FREE-VALVE’s sw ends forged globe valves offer high performance, reliability and safety. The Globe Valve are especially suitable for high pressure and high temperature application in steam, oil and gas processing, power industries, in chemical and petrochemical industries.

Model:FRJ61Y
Price:100-2000USD/set
Price terms:FOB,CFR,FCA,CIF
Payment terms:TT,LC
Origin:China
Wechat:FreeValve
Email:sales@free-valve.com

Download company brochure

Product specifications

Valve type: Needle Valves
Type of Industry: Chemical
Oil & Gas
Food
Valve material: Bronze
Brass
Carbon Steel
Stainless Steel
Pressure class: 600 Lbs
300 Lbs
150 Lbs
900 Lbs
Valve standards: ANSI
DN (Diametre Nominal)
Make / Brand: FREE-VALVE

Company introduction

Zhengzhou Free Fluid Control Technology Co.,Ltd is leader in the design valve and application of special industrial valves , we provide high quality industrial products for our customers all the time. First introduced ceramic engineer valve in the year 2008, FREE-VALVE’S have steadily proven their worth in tough industrial applications once thought to be solely the province of steel or ceramic valves. Today, as challenge traditional thinking in abrasive fluid applications, FREE-VALVES offer a wide rang of products:ceramic knife gate valve , ceramic double gate valve , ceramic rotary gate valve , slurry valve ,tank bottom angle valve , V type ball valve, ball valve, butterfly valve,ceramic tile lined composite pipes etc . They have a wide application in coal washing plant ,power plant ,alumina refinery, steel plant,petro-chemical etc. Our valves have been exported to Pakistan ,Turkey ,United states ,Indonesia,Taiwan etc .
