Product description

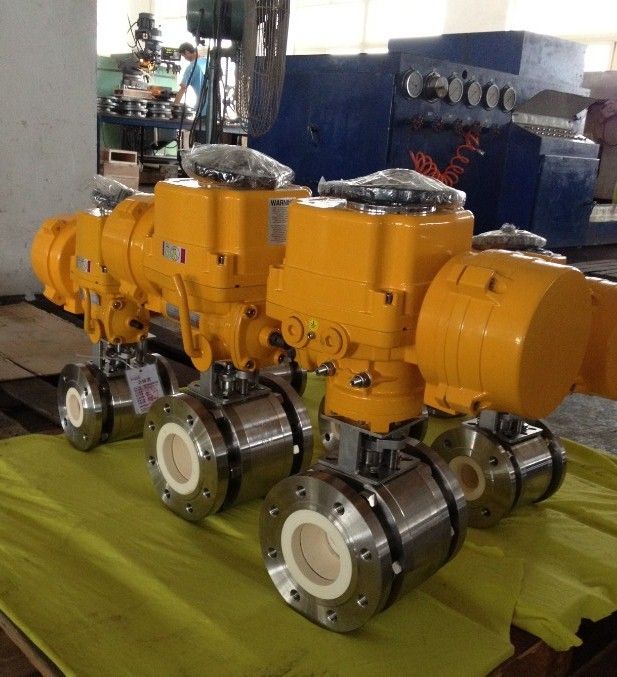

Ceramic lined ball valve is one of the most erosion resistant control valves avaliable today .It is used in abrasive applications such as lime mud,metal slurries ,titannium dioxide and cement production where even stellited surface do not last .
Features
1.The hardness of the ceramic material can be higher than HRC80.It is almost the hardest material in the world .It is suitable for a wide range of severe service industrial applications .
2. Completely ceramic flow path without metal parts provides maxium erosion resistance .
3.Through grinding machining, our ceramic ball valve has high precision and outstanding sealing performance.
4.Flange type ceramic lined ball valve is suit for any abrasive and corrosive medium .
5.Customized V type ceramic control valve is also available .
Technical Specifications
Size:1”~8” DN20~DN200
Pressure:Class 150 ~Class 300 PN1.0~PN6.4
Body Material:WCB(A105), CF8(304), CF8M(316), CF3(304L), CF3M(316L) etc.
Trim Material:Toughened engineering ceramics
Connection:Flange ,threaded etc,
Driving method :Electric operating,pneumatic operating or worm gear drive
Applications
Lime mud control
kaolin,china-clay control
Carbonate handling
Gypsum handling
Cement production
Metal slurries
Catalst regeneration
Desulphurization units

Download company brochure

Download product brochure

Product specifications

Valve type: Ball Valves
Type of Industry: Valve Manufacturers
Valve material: Stainless Steel
Ceramic
Cast Carbon steel
Carbon Steel
Pressure class: 300 Lbs
150 Lbs
PN 2.5
PN 6
Valve standards: ASTM (American Society for Testing and Materials)
ANSI
GB/JB/ZB (Chinese Valve Standards)
ASME (American Society of Mechanical Engineers)
Make / Brand: QUANSHUN

Company introduction

Covering about 43,920 square meters in area, Henan Quanshun Flow Control Science & Technology Co.,Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve ,rotating ball valve ,ball valve, control valve, butterfly valve, gate valve, check valve and others. Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Currently the registered capital of our company is more that 8 million Dollars .We have set foot in the valve industry from the year 1984. In the past 30 years we have obtained rich experience in industrial valve and project service.
Due to the all-round quality management system,our valves has successfully passed certain certificate like :ISO9001, ISO14001,OHSAS18001,CE and some others.At present we granted 31 national patents.The superior quality of our valves come from strict quality control,reasonable inspection process and sufficient attention on each detail.
Possessing strong technical strength, our factory is equipped with advanced machining and testing equipment,including machining center,numerical control machine tool,large-scale vertical lathe,large boring mill,grinding machine, multi-function valve performance testing device and so on.Therefore, we are capable of producing valves made of both general material and special materials like WCB,WC6,WC9,304,316,316L,CF8,CF8M, etc.
To complete the standard system of industrial manufacture, we make optimal overall arrangement on the production line. By utilizing the existed advanced equipment, we comprehensively control the casting process ,inspection process,machining,assembling and commissioning of the valve .
Highly praised in the industry due to the outstanding product performance,our industrial valves is applied in the fields such as mining industry , chemical industry ,metallurgy industry, water industry , power industry, nonferrous metal, and some others.
QUANSHUN FLOW CONTROL has successfully established cooperative relationship with final user such as CHALCO,V-COALIMEX ,SINOPEC group and other distributors , Engineer company & Designing institute from all over the world .
We are looking forward to building partnership with more customer from all over the world !
