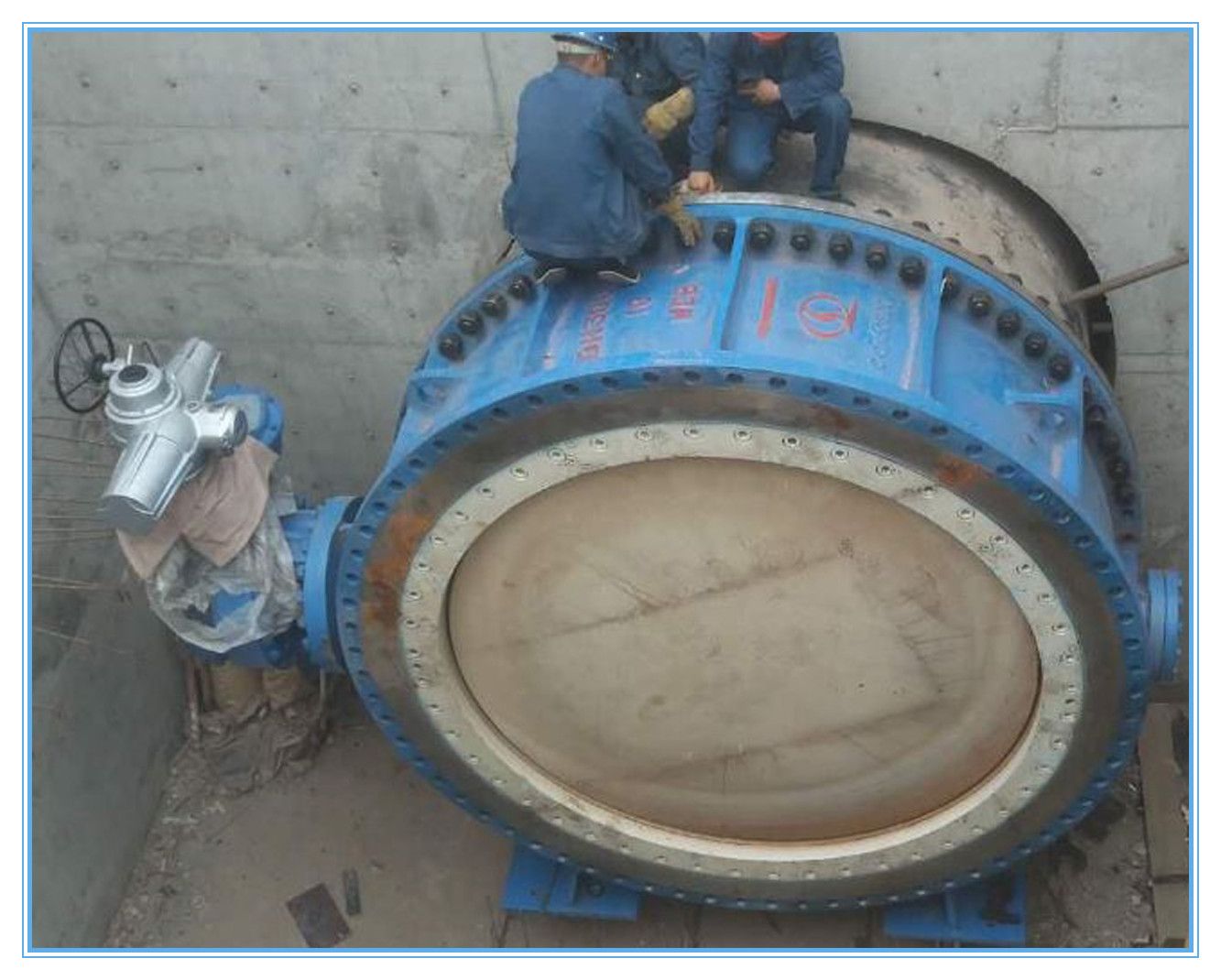

Product description

The bidirectional rotary ball valve is developed based on the mechanism of the butterfly valve and semi ball valve . The special butterfly valve can be used at inlet of the water pump,piping network system,recovery stem,high water tank,sewage system and the back flow prevention to shut off or control the pipeline.
Features
1.Designed with bidirectional sealing structure,the installation of the bidirectional rotary ball valve will not be restricted by the direction of the fluid.
2.Since the metal sealed bidirectional rotary ball valve is offered with self-sealing device,reliable sealing performance can be realized under the pressure from medium.
3.Powerful specific pressure of sealing can be obtained the valve is installed on the direction in opposite to that of the fluid.The pressure acts on the valve seat of the bidirectional rotary ball valve. The contact area of the point action is annular,
4.The rotary ball valve has long service life due to wear compensation.
5.The unique rotational structure ,as well as the sphere-conical sealing surface of the valve seat,makes for the cleaning function the solid particle will be crushed when the electric operated bidirectional rotary ball valve is opened or closed.
Technical Parameters
Body material ：WCB, CF8, CF8M, CF3, CF3M,etc.
Sealing material：Hard alloy
Connection type：Flange and weld
Operating type：manual ,electric or pneumatic
Nominal Diameter ：2”~40” DN50~DN2000
Pressure：Class 150~Class 300 PN1.0~PN4.0
Application
Municipal Engineering
Circulating water system
Water treatment system
Fire extinguisher system

Download company brochure

Download product brochure

Product specifications

Company introduction

Covering about 43,920 square meters in area, Henan Quanshun Flow Control Science & Technology Co.,Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve ,rotating ball valve ,ball valve, control valve, butterfly valve, gate valve, check valve and others. Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Currently the registered capital of our company is more that 8 million Dollars .We have set foot in the valve industry from the year 1984. In the past 30 years we have obtained rich experience in industrial valve and project service.
Due to the all-round quality management system,our valves has successfully passed certain certificate like :ISO9001, ISO14001,OHSAS18001,CE and some others.At present we granted 31 national patents.The superior quality of our valves come from strict quality control,reasonable inspection process and sufficient attention on each detail.
Possessing strong technical strength, our factory is equipped with advanced machining and testing equipment,including machining center,numerical control machine tool,large-scale vertical lathe,large boring mill,grinding machine, multi-function valve performance testing device and so on.Therefore, we are capable of producing valves made of both general material and special materials like WCB,WC6,WC9,304,316,316L,CF8,CF8M, etc.
To complete the standard system of industrial manufacture, we make optimal overall arrangement on the production line. By utilizing the existed advanced equipment, we comprehensively control the casting process ,inspection process,machining,assembling and commissioning of the valve .
Highly praised in the industry due to the outstanding product performance,our industrial valves is applied in the fields such as mining industry , chemical industry ,metallurgy industry, water industry , power industry, nonferrous metal, and some others.
QUANSHUN FLOW CONTROL has successfully established cooperative relationship with final user such as CHALCO,V-COALIMEX ,SINOPEC group and other distributors , Engineer company & Designing institute from all over the world .
We are looking forward to building partnership with more customer from all over the world !
