Product description
Specification:
Type

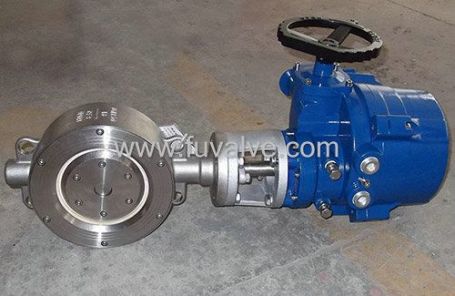

Wafer Type Ceramic Butterfly Valves
Size
DN50-DN300(2”-12”)
Pressure Rating
PN6, PN10,PN16, CL150
Body Material
WCB, CF8, CF8M, CF3M,CN7M
Trim Material
99% Al2O3 Ceramics, ZrO2 Ceramics, Si3N4, Solid Tungsten Carbide
End Connection
Wafer Type,EN1092-1, DIN 2501, ASME B16.5
www.fuvalve.com
Typical Applications:
For most mediums which contains solid particles, abrasion is a very troublesome problem for valves and pipe fittings. Butterfly valve is one of the most common valve types in pipelines. If working medium is abrasive, service life of both soft sealing and metal sealing butterfly valves are very short. To solve this problem, FUVALVE developes wafer type ceramic butterfly valves to meet the requirements of high abrasive applications. If working medium is both abrasive and corrosive, we can select suitable body materials for wafer type ceramic butterfly valves to avoid possible corrosion.
Mining slag
Coal washing
Ash Slurry
Suspension
Ash
Grain
Quartz Sand
Metallurgical dust
Ores
Granules
Product specifications
Valve type: | Butterfly Valves |
Type of Industry: | abrasive powder |
Valve material: | Ceramic |
Pressure class: | 150 Lbs |
Valve standards: | ANSI |
GB/JB/ZB (Chinese Valve Standards) | |
Make / Brand: | FUVALVE |
Company introduction
Fuvalve(Xiamen) Co., Limited is an engineering company dealing with integrated flow control solutions.We are specializing in the various industrial valves for abrasive,corrosive and high-temperature application,the valves are designed and produced according to ANSI,DIN,BS,JIS standards, certified by ISO, CE etc.,We effectively manage enquiries to delivery step by step to ensure top quality products are delivered on time and within budget. We believe we can serve our clients better with our sincerity,dedication and rich experiences in exporting and manufacturing.
