Product description

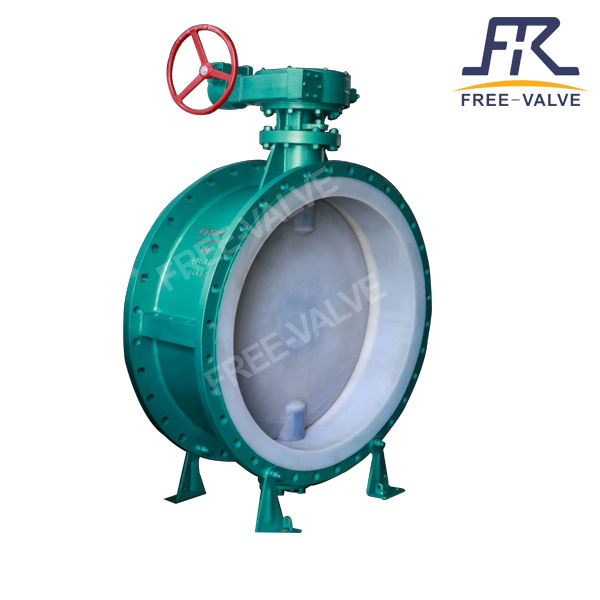

FREE-VALVE’s PTFE/FEP/PFA lined Flange type butterfly valve adopts the central line fluorine lined structure,the valve body and disc are lined with anticorrosive materials so as to effectively avoid the corrosion of the valve by strong corrosive media,so the valve has both the common butterfly valve mechanical strength, and also can play strong resistance to chemical medium properties .
Features
1.The valve positioner is used, the proportional adjustment is achieved, flow characteristic of the valve has approximately equal percentage,
2.Lined butterfly valve has good sealing performance and is bi-directional flow for zero leakage.
3. Broad lined materials of body and trim for a variety of medium service,the valve is an ideal solution to control and shut-off applications
4.The valve can be equipped with various types of electric actuators
5.It has small torque and easy to operate,it can be installed in any direction.
Technical Specification
1) Size Range: DN50~DN1000
2) Pressure Range: PN6~PN16
3) Connection Type:Flange
4) Lining Material:PTFE
5) Body material:WCB, CF8 ,CF8M
6) Pressure test:GB/T13927, API598
7) Face to Face: GB/T12221, API 609
8) Operation Method: Manual lever , Worm gear ,Electric ,Pneumatic
9) Spark Test : 15 K.V.D.C.
10) Service temperature:-20°C to 150°C
Application
FREE-VALVE’s PTFE/FEP/PFA lined Flange type butterfly valves are ideally suited for the stringent performance requirements demanded with isolating and controlling all kinds of acid、alkali 、salt and oxidant、reductant、organic solvent and other media.it is widely used in chemical industry、petroleum、medicine、food,papermaking semifluid piping and container closure and adjust equipment.
Model:FRD371F46,FRD371F
Price terms:FOB,CIF,FCA,CFR
Price:100-5000USD/set
Origin:China
Brand:FREE-VALVE
Wechat ID:FreeValve
Product specifications
| Valve type: | Butterfly Valves |
| Type of Industry: | Oil & Gas |
| Food | |
| Chemical | |
| Valve material: | Carbon Steel |
| Composite | |
| Pressure class: | 150 Lbs |
| Valve standards: | ANSI |
| DN (Diametre Nominal) | |
| GB/JB/ZB (Chinese Valve Standards) | |
| Make / Brand: | FREE-VALVE |
Company introduction
Zhengzhou Free Fluid Control Technology Co.,Ltd is leader in the design valve and application of special industrial valves , we provide high quality industrial products for our customers all the time. First introduced ceramic engineer valve in the year 2008, FREE-VALVE’S have steadily proven their worth in tough industrial applications once thought to be solely the province of steel or ceramic valves. Today, as challenge traditional thinking in abrasive fluid applications, FREE-VALVES offer a wide rang of products:ceramic knife gate valve , ceramic double gate valve , ceramic rotary gate valve , slurry valve ,tank bottom angle valve , V type ball valve, ball valve, butterfly valve,ceramic tile lined composite pipes etc . They have a wide application in coal washing plant ,power plant ,alumina refinery, steel plant,petro-chemical etc. Our valves have been exported to Pakistan ,Turkey ,United states ,Indonesia,Taiwan etc .
