Product description

Scotch Yoke Actuators - THD Series

Pneumatic Actuators for Quarter-Turn Valves and Dampers
Torques to 1,600,000 in. lbs.
Available in Double Acting and Spring Return
The Triac line of heavy duty scotch yoke actuators offer a broad range of torques to 1,600,000 in-lbs. The THD series is designed to operate ball, butterfly, plug valves, dampers or any device that requires a quarter-turn movement for on-off or throttling service. Our standard offering is the symmetrical design yoke that delivers maximum torque at both ends of the 90º cycle. The square slide bearing with guide bar gives high cycle life and smooth stroke while minimizing wear points. As with all Triac actuators, our THD series comes with a complete line of accessories, including jackscrew, hydraulic overrides, limit switches, solenoids and positioners. A-T Controls also offers complete mounting hardware to integrate our actuator with any quarter-turn valve, damper or louver.Contact us for application assistance.

Heavy Duty Scotch Yoke Actuators Feature:

Torques to 1,600,000 in-lbs.
Travel adjustments ±8º for clockwise and counter-clockwise strokes
Nitrile rubber piston O-rings offer excellent sealing and wear. Optional low and high temperature seals and lube are available
RTFE Guide Band supports piston while providing smooth operation and extended life
Extra large, strong piston rod for long life and torque transmission
Namur accessory mounting pads permit mounting standardization of limit switches, positioners, etc.
Ductile iron center body
Modular design allows for installing power groups and spring cartridges so that actuators may be set up for different air pressures and for Fail Clockwise and Fail Counter-clockwise
Rugged heavy duty steel pressure cylinders chrome plated for long wear and corrosion resistance
Safe, welded spring cartridges with numerous options for a broad range of air pressure conditions
Alloy steel, corrosion resistant and heat treated springs designed and manufactured for long high cycle life
Steel slide block, bronze slide bearings to minimize friction and provide long cycle life*
Visual position indicator

Download company brochure

Download product brochure

Product specifications

Valve type: ESD Valves
Type of Industry: Hydrocarbon Processing
Mining
Oil & Gas
Food
Chemical
Valve material: Stainless Steel
Aluminium
Valve standards: Available for all Valve Standards
Make / Brand: AT controls

Company introduction

A-T Controls, Inc. designs, develops and manufactures valves, actuators and valve control products.

Founded in 1994, A-T Controls currently operates out of the primary facility in Cincinnati, Ohio and another in Stafford, Texas with several sales offices throughout North America. Our Products are sold and serviced through a network of Distributors throughout the U.S. and Canada, and parts of Central and South America.

A-T Controls product line includes:

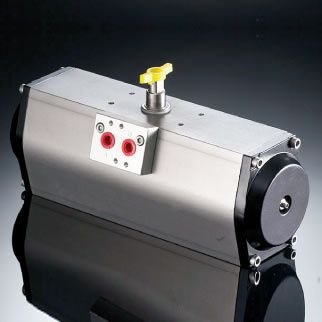

TRIAC Pneumatic Rack and Pinion Actuators
100 – 40,000 inch lbs. Torque Available in Double Acting and Spring Return

TRIAC Scotch Yoke Actuators
Symmetric & Canted Design
Torques 400 - 1,600,000 inch lbs. Available in Double Acting & Spring Return

TRIAC Stainless Steel and 180 degree Pneumatic Actuators

TRIAC Pneumatic and Electro-pneumatic Accessories
Limit Switches, Solenoids, Positioners, Manual Overrides

TRIAC Electric Actuators
300-80,000 inch lbs. Torque, On/Off and 4-20 Modulating actuators

TRIAC Manual and Automated Ball Valve Packages
Threaded, Socket Weld, & Butt Weld; Carbon or Stainless Steel Automated Ball Valves (up to 4”)
ANSI 150 -600LB Flanged Carbon and Stainless Automated Ball Valves (up to 12”)
3-way Automated Ball Valves (up to 12”)
API 607D FIRESAFE Automated Ball Valves (up to 6”)
Sanitary End Automated Ball Valves (up to 4”)
Cryogenic Manual and Automated 3-pc High Performance Valves (up to 2”)

TRIAC Metal Seat Products
Metal Seated Valves, 3 Piece (½”-2”), Flanged (½”-8”), ANSI 150-600LB

TRIAC Control Valves
V-Port and V-Segment Control Valves

TRIAC Butterfly Valves (Rubber Seated)
Ductile Iron Body (2” and larger)
Stainless Steel Body (2”-12”)

TRIAC High Performance Butterfly Valves
Soft Seat, Metal Seat, Firesafe

A-T Custom Valve Automation Systems
Special Control Circuits
Fusible Link Valves
Damper Drive Systems
ESD Applications
Floor Drives

View our Valves, Actuators and Automation Control products. Full Line Prodcut catalog PDF
The Goal for our Valve Control Industry Customers

A-T Controls goal is to offer the finest quality, highest value products available today. Our extensive inventories and highly experienced staff provide the customer solutions to valve and actuator requirements with the best turnaround in the industry.

Our products are used in virtually every industry including Gas and Oil, Refining, Petrochemical, Chemical Processing, Pulp and Paper, Mining, Transportation, Food and Beverage, Pharmaceuticals, Ship Building, HVAC, Power.

A-T Controls employs well experienced technicians with an average industry experience of 14 years. All assemblies are calibrated, tested and properly packaged to assure that the user receives the exact product required for their application. Complete IOMs are available online in the Downloads section. Every actuator and actuated assembly is provided with a serial number upon completion which allows for easy traceability. Additionally, A-T Ball valves may be furnished with CMTRs if requested at time of order.
