Product description

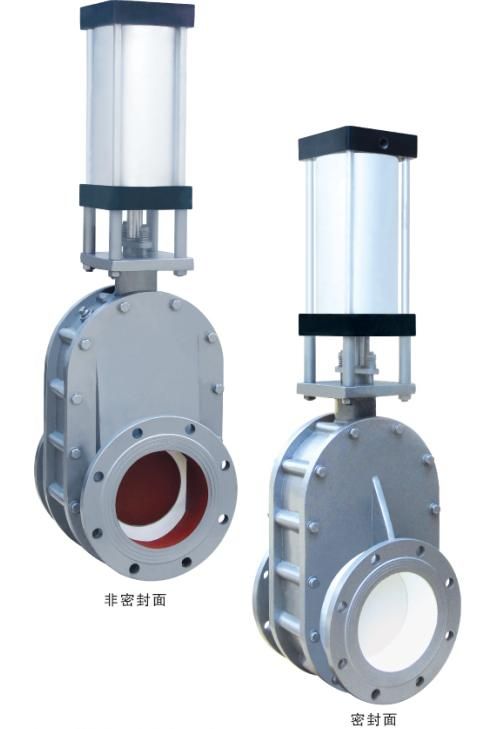

Pneumatic Ceramic Double Plate Gate Valve
Particularly offered for solid-gas medium,the pneumatic ceramic double disc gate valve takes engineering ceramic as the main sealing material .
Benefits
1.The sealing surface of the valve is made of toughened ceramics with abrasion resistance and long service life.
2.Two-side sealing can realized due to double plate structure of the pneumatic ceramic double disc gate valve.
3.In the process of opening and closing ,the valve plate can rotate automatically ,which leads to the grinding and polishing between the two sealing surface of the ceramic double plate gate valve.
4.There is a residue outlet designed for ceramic double disc gate valve,being used to conduct dust blowing periodically .
Technical Specification
Size : 2”~12” DN50~DN300
Pressure: Class 150 PN1.0-PN1.6MPa
Body material : WCB(A105,CF8(304),etc.
Sealing material :Toughened engineering ceramic
Connection method :Flange type
Drive method: Pneumatic
Applications
Power plantAsh transport system

Download company brochure

Download product brochure

Product specifications

Company introduction

Covering about 43,920 square meters in area, Henan Quanshun Flow Control Science & Technology Co.,Ltd is a special high-tech enterprise engaged in manufacturing flow control equipment including: semi-ball valve ,rotating ball valve ,ball valve, control valve, butterfly valve, gate valve, check valve and others. Our equipment can be used in poor working condition with strict requirement on corrosion resistance, abrasion resistance and erosion resistance of the product.
Currently the registered capital of our company is more that 8 million Dollars .We have set foot in the valve industry from the year 1984. In the past 30 years we have obtained rich experience in industrial valve and project service.
Due to the all-round quality management system,our valves has successfully passed certain certificate like :ISO9001, ISO14001,OHSAS18001,CE and some others.At present we granted 31 national patents.The superior quality of our valves come from strict quality control,reasonable inspection process and sufficient attention on each detail.
Possessing strong technical strength, our factory is equipped with advanced machining and testing equipment,including machining center,numerical control machine tool,large-scale vertical lathe,large boring mill,grinding machine, multi-function valve performance testing device and so on.Therefore, we are capable of producing valves made of both general material and special materials like WCB,WC6,WC9,304,316,316L,CF8,CF8M, etc.
To complete the standard system of industrial manufacture, we make optimal overall arrangement on the production line. By utilizing the existed advanced equipment, we comprehensively control the casting process ,inspection process,machining,assembling and commissioning of the valve .
Highly praised in the industry due to the outstanding product performance,our industrial valves is applied in the fields such as mining industry , chemical industry ,metallurgy industry, water industry , power industry, nonferrous metal, and some others.
QUANSHUN FLOW CONTROL has successfully established cooperative relationship with final user such as CHALCO,V-COALIMEX ,SINOPEC group and other distributors , Engineer company & Designing institute from all over the world .
We are looking forward to building partnership with more customer from all over the world !
